Attribute Filter Configuration

Overview

Attribute filtering is the core feature for precisely controlling query results. By setting attribute conditions, you can filter CI instances that meet specific business requirements, making query results more precise and valuable.

What this feature can do for you:

• Precisely filter CI instances meeting specific conditions
• Combine multiple conditions to implement complex query logic
• Support rich operators for multiple data types

Main Features

• Visual Filter Condition Builder: No code writing needed
• Rich Operators: Supports specialized operators for different data types
• Logical Combinations: Supports AND/OR/NOT logical combination conditions
• Condition Groups: Supports multi-level condition nesting

Attribute Filter Interface

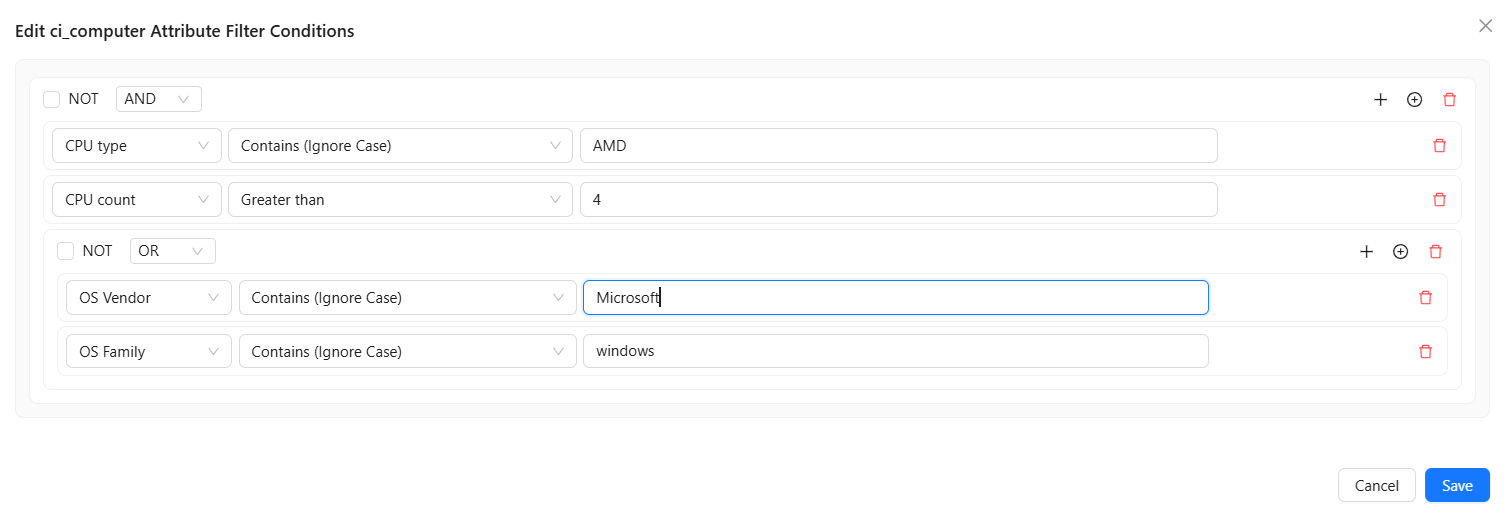

Below is the editing interface for CI attribute filter conditions:

Operator Reference

Different data types support different operators. Below is the complete operator list categorized by data type:

Text Type Operators

String

Available Operators	Description	Use Case
Equals	Exact string match	Find records where attribute value equals a specific string
Not Equals	Exclude a specific string value	Exclude records where attribute value equals a specific string
Starts With	String starts with specified content	Find records where attribute value starts with a specified prefix
Ends With	String ends with specified content	Find records where attribute value ends with a specified suffix
Is Empty	Field value is empty or doesn't exist	Find records where attribute is empty
Contains (Ignore Case)	Contains, ignoring case	Find records where attribute value contains a specified string (case insensitive)
In	String value is in the specified list (comma separated)	Find records where attribute value matches one or more specified strings
Not In	String value is not in the specified list (comma separated)	Exclude records where attribute value matches all specified strings

Email

Same as String type

URL

Same as String type

IP Address

Same as String type

Key-Value List

Key-value list types require selecting a key first, then filtering based on the value for that key. Operators check whether any key-value pair in the list meets the condition.

Available Operators	Description	Use Case
Equals	Key exists in list and value exactly matches	Find records where the "Environment" key in tags attribute equals "Production"
Not Equals	Key exists in list and value does not equal	Find CIs where the "Environment" key in tags attribute does not equal "Testing"
Starts With	Key exists in list and value starts with specified content	Find records where the "Environment" key in tags starts with prefix "Development"
Ends With	Key exists in list and value ends with specified content	Find records where the "Environment" key in tags ends with suffix "Testing"
Is Empty	Key exists in list and value is empty or doesn't exist	Find records where the value is empty
Contains (Ignore Case)	Key exists in list and value contains, ignoring case	Find records where the "Environment" key value contains "Testing"
In	Key exists in list and value is in the specified list (comma separated)	Find records where the "Environment" key value matches "Production", "Development", or "Testing"
Not In	Key exists in list and value is not in the specified list (comma separated)	Exclude records where the "Environment" key value matches "Production", "Development", or "Testing"

Usage Example:

• Select a key-value list type attribute like tags, enter key: Environment → Operator: Equals → Value: Production
• Meaning: Find CIs where the environment tag is "Production"

Numeric Type Operators

Integer

Available Operators	Description	Use Case
Equals	Exact numeric match	Find records where attribute value equals a specific number
Not Equals	Exclude a specific number	Exclude records where attribute value equals a specific number
Greater Than	Value is greater than specified	Find records where attribute value exceeds a threshold
Greater Than or Equal	Value is greater than or equal to specified	Find records where attribute value meets or exceeds a threshold
Less Than	Value is less than specified	Find records where attribute value is below a threshold
Less Than or Equal	Value is less than or equal to specified	Find records where attribute value does not exceed a threshold
Is Empty	Field value is empty or doesn't exist	Find records where attribute is empty
In	Value is in the specified list (comma separated)	Find records where attribute value matches one of multiple numbers
Not In	Value is not in the specified list (comma separated)	Exclude records where attribute value matches one of multiple numbers

Long Integer

Same as Integer

Float

Same as Integer

Double

Same as Integer

Datetime Type Operators

Datetime

Available Operators	Description	Use Case
Equals	Exact date match	Find records for a specific date
Not Equals	Exclude a specific date	Exclude records for a specific date
Greater Than	Date is after specified date	Find records after a specified date
Greater Than or Equal	Date is on or after specified date	Find records on or after a specified date
Less Than	Date is before specified date	Find records before a specified date
Less Than or Equal	Date is on or before specified date	Find records on or before a specified date
Between	Date is between two dates	Find records within a date range
Is Empty	Date field is empty	Find records with no date filled

Boolean and Option Type Operators

Boolean

Available Operators	Description	Use Case
Is True	Boolean value is true	Find records where attribute value is true
Is False	Boolean value is false	Find records where attribute value is false
Is Empty	Boolean field is empty	Find records where attribute is empty

Option (Enum)

Available Operators	Description	Use Case
Equals	Option value exact match	Find records where attribute is a specific option value
Not Equals	Exclude a specific option value	Exclude records where attribute is a specific option value
In	Value is in the specified list (comma separated)	Find records where attribute value is one of multiple option values
Not In	Value is not in the specified list (comma separated)	Exclude records where attribute value is one of multiple option values
Is Empty	Option field is empty	Find records with no option selected

CI ID Type Operators

CI ID

CI ID types are used to reference other CIs, establishing associations between CIs.

Available Operators	Description	Use Case
Equals	Referenced CI ID exact match	Find records matching a specific CI ID
Not Equals	Referenced CI ID does not equal	Exclude records matching a specific CI ID
In	Referenced CI ID is in the specified list (comma separated)	Find records matching multiple specified CI IDs
Not In	Referenced CI ID is not in the specified list (comma separated)	Exclude records matching specified CI IDs

How to Use

Adding a Single Condition

1. Click the + icon button to Add new filter condition
2. Select the attribute field to filter
3. Select an operator
4. Enter or select a comparison value
5. The condition is automatically added to the condition list

Combining Multiple Conditions

You can combine multiple conditions using logical operators:

Logical Operator	Description	Use Case
AND	All conditions must be satisfied	Need to satisfy multiple filter conditions simultaneously
OR	At least one condition must be satisfied	Need to satisfy any one filter condition
NOT	Negate the condition	Exclude records meeting specific conditions

Condition Groups

For complex queries, you can create condition groups:

1. Select multiple conditions
2. Click the ⊕ icon button to Add new subgroup
3. Select the group's logical operator (AND/OR)
4. You can nest more groups within a group

Example: Find CIs where "(status is running AND region is East) OR (status is pending maintenance AND priority is high)"

Data Type Summary

The above operator descriptions cover all data types supported in CMDB. For the complete data type list, see: Attribute Types
